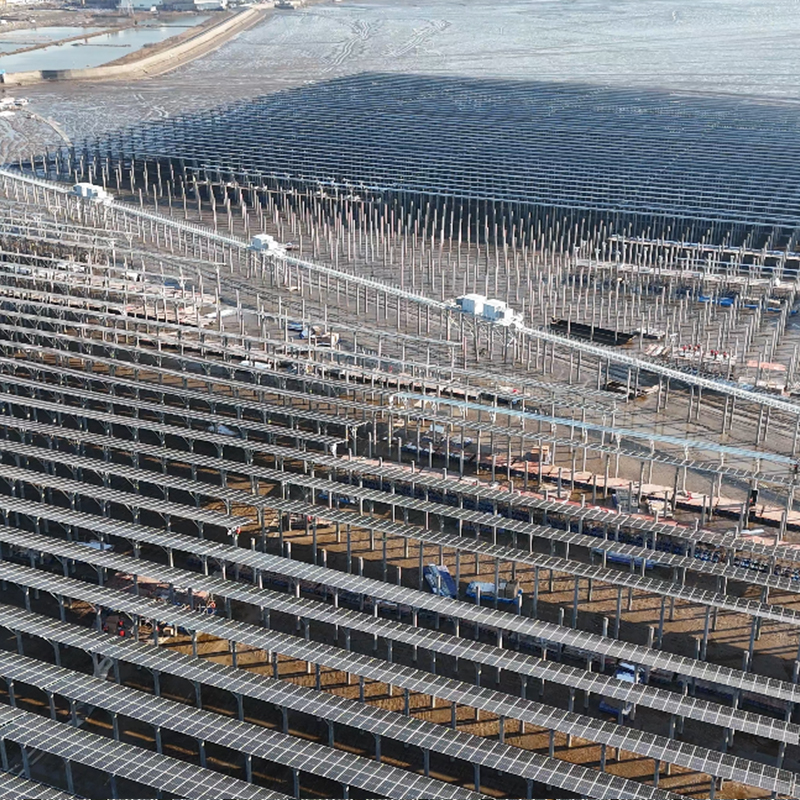

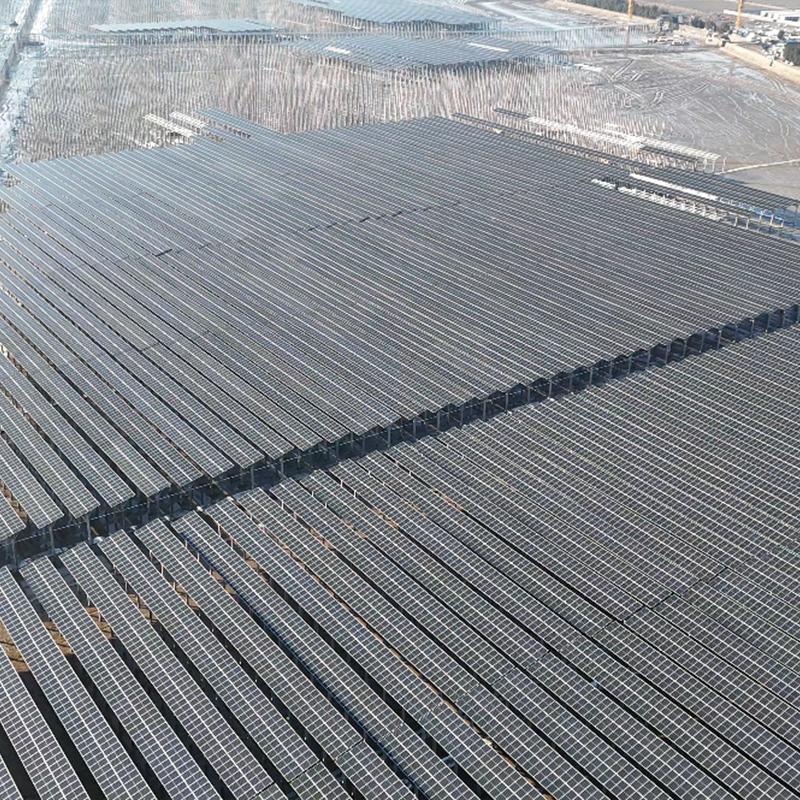

Flexible Photovoltaic Mounting System

The flexible support system has the advantages of a large span and an adjustable span, flexible layout, and high power generation efficiency, good cracking resistance, less steel, small bearing capacity, etc.
In the large-span area of the same land area, the cloth plate capacity of the flexible support is about three times that of the fixed support. At present, under the background of the national "dual carbon" strategy, the application scenarios of photovoltaic power plants are becoming more diverse. In view of the characteristics of flexible support and small footprint, it can be used in a wide range of applications, such as beaches, fishing ponds, waste swimming plants, complex mountains, barren slopes and pools, and has broad application prospects.

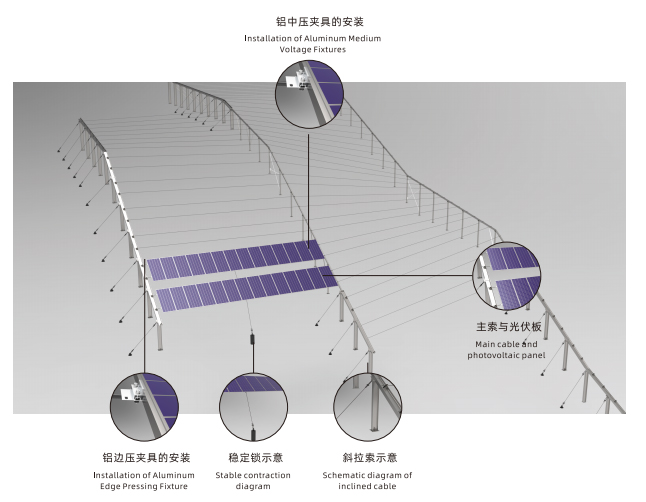

The installation mode of the flexible photovoltaic bracket is different from that of the general bracket, which mainly pays attention to local conditions.
In order to ensure the proper lighting effect and energy output, the Angle and height of the bracket need to be adjusted according to the actual situation. Of course, the installation of the bracket also needs to be combined with the actual local situation, to adopt the an appropriate design and construction scheme to ensure the safe and stable operation of the photovoltaic power station and achieve the ultimate energy output.

Advantages
Weight:
Fluorine composite without a glass structure, component weight reduction of 60% to 70%, and transportation costs are reduced by 45%.

Hidden Crack:
Flexible materials have no hidden cracks and no power attenuation.

Security:
1. Fluorine composite anti-aging UV, high temperature resistance, corrosion resistance, low water permeability, and high thermal conductivity.
2. The IP68 junction box is more waterproof and reliable.

High Efficiency:
The cell is connected to the non-gapimbricated structure in phase Add 7% battery in the same area to increase the power generation density.

Installation:
Double-sided tape quick installation without wind load, reduced 70% cost, wide application scenarios, and easy to clean.

Warranty:
Reliable materials & advanced technology
Material warranty 10 years, power linearity warranty 25 years

Application reality
Water treatment plant
Barren hills and steep slopes
River fish pond
Tourist landscape
Complementation of agriculture and light
Photovoltaic car shed
