Upright/ Ground-mounted/ Tripod PV Mounting System
Upright/ Ground-mounted/ Tripod PV Mounting System

Upright/ Ground-mounted/ Tripod PV Mounting System

Primary Model/Name: Single-Row Upright PV Mounting System
Main Materials: Galvanized Carbon Steel, Aluminum Alloy, Stainless Steel
Structural Performance:
Safe Wind Speed: 26 m/s (Customizable)
Snow Load: 0.8 kN/m²
Key Dimensions/Angles:
Installation Tilt Angle: Customizable
Stay Cable Diameter: 16–28 mm
Design Life & Warranty:
Design Life: 25 years
Warranty: 5 years
Primary Application Scenarios: Ground-mounted PV Power Plants
Core Features: High adaptability, material and structural parameters customizable per client requirements

Parameter Category: Truss-Type Mounting System
Primary Model/Name: Long-Span Flexible Cable Truss System
Main Materials: Steel Structure, Prestressed Steel Strand
Structural Performance:
Single Span: 15–30 meters
Prestress Value: 4–8 tons
Key Dimensions/Angles:
Installation Height: ≥4 meters
Cable Diameter: 16–28 mm
Design Life & Warranty:
Design Life: 25 years
Warranty: 5 years
Primary Application Scenarios: Large-span applications (e.g., parking lots, wastewater treatment plants)
Core Features: Large span, reduced foundation requirements, steel-saving design

Parameter Category: Tripod Mounting System
Primary Model/Name: Rotating Folding Tilt Mount, Flat Roof Portable Mount
Main Materials: Aluminum Alloy, Stainless Steel 304
Structural Performance:
Wind Load: 20–60 m/s
Snow Load: 0.5–1.4 kN/m²
Key Dimensions/Angles:
Maximum Tilt Angle: Up to 60°
Multiple specifications available
Warranty: 5–10 years
Primary Application Scenarios: Flat roofs, RVs, small portable systems

CONTACT US
PREV: Fixed Photovoltaic Support System
NEXT: Flexible Photovoltaic Mounting System

Description

Detailed images

Contact us

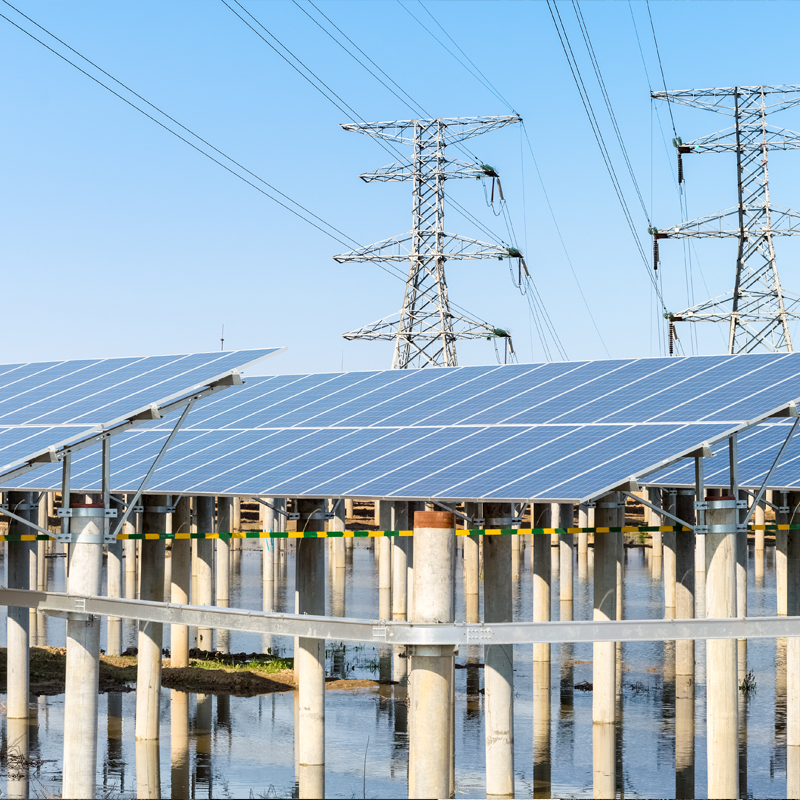

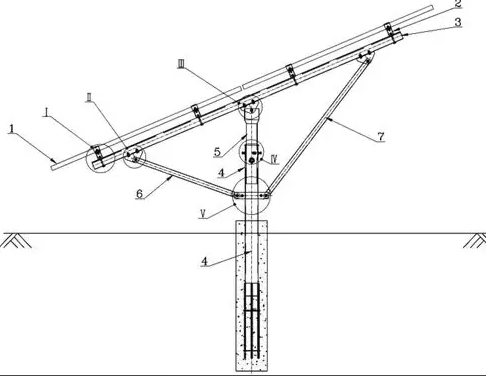

1. Column-type support
It uses vertical columns as the main support. Whether it is a large ground-mounted power station or a commercial and industrial roof, as long as the site is relatively flat, it is the most classic and widely used choice.

2. Truss-type support
The core advantage of truss-type supports lies in their outstanding large-span capacity and efficient material utilization rate. It forms a lattice beam through triangular units, which can achieve a span of over ten meters with less steel usage, thereby significantly reducing the number of foundations. This feature enables it to handle complex terrains such as ditches and depressions with ease, and provides an open and barrier-free space for agricultural, fishery activities or mechanical passage beneath it. It is an ideal structural solution for realizing "photovoltaic +" composite projects.

3. Inverted tripod
The core advantage of the inverted triangular scaffold lies in its unparalleled three-dimensional rigidity, stability and outstanding wind and torsion resistance performance. It upgrades the traditional single beam into a stable triangular spatial structure, which can convert the load into a more scientific three-dimensional force. This design can greatly suppress wind-induced vibration, effectively reduce the risk of hidden cracking of components caused by deformation of the support, and provide the highest level of mechanical guarantee for the long-term reliable operation of the power station. It is especially suitable for areas with strong winds, coastal scenarios, and projects using large-sized components.
